The manufacturing of tire molds is a process defined by complexity, high precision, and the need for constant design iteration to improve tire performance. Traditionally, creating the intricate tread patterns involved laborious CNC machining and manual steel sheet inlay, creating a major industry bottleneck. Today, 3D printing for tire mould has revolutionized this process, and the key to scaling this transformation lies in the integration of industrial hardware with smart, cloud-based software.
As a dedicated industrial 3D printer manufacturer, UnionTech has pioneered the specialized RA600 SLA machine for tire molds and paired it with the 3D printing cloud platform—specifically, their Unionfab ONE system—to enable a seamless, “one-click intelligent printing” workflow that transforms complexity into simplicity.
The Pain Points in Traditional Tire Mold Manufacturing
Before the adoption of additive manufacturing, the creation of a tire mold master pattern faced several industrial challenges:
Complexity and Detail: Modern tire patterns (sipes, grooves) are exceptionally complex, often requiring thousands of micro-details that are difficult and slow to machine.
Process Fragmentation: The digital workflow was often segmented, involving separate software for design, preprocessing, slicing, and machine control, leading to errors and delays.
Production Management: Monitoring multiple large-format printers, managing material inventory, and tracking production schedules were labor-intensive and error-prone tasks.

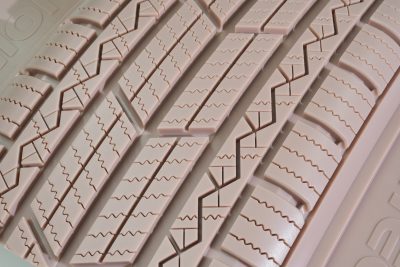

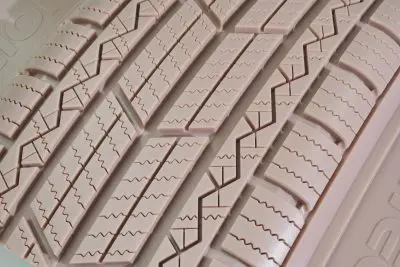

The move to 3D printing for tire mould master patterns using high-precision industrial Stereolithography (SLA) printers, like the UnionTech RA600, solved the complexity issue by allowing integrated formation of intricate patterns. However, scaling this production requires an intelligent digital backbone: the 3D printing cloud platform.
The Core of Intelligent Production: The 3D Printing Cloud Platform
UnionTech’s Unionfab ONE is a prime example of a 3D printing cloud platform designed to address the operational challenges of industrial 3D printing, turning a complex multi-step process into a single, automated workflow. This platform integrates the entire production chain—from the CAD file to the final printed part—for facilities focused on 3D printing for tire mould and other industrial applications.
Here is how the platform enables “one-click intelligent printing”:
Automated Pre-Processing (Polydevs)
The first and most time-consuming step is preparing the 3D model for printing (pre-processing). The 3D printing cloud platform handles this automatically:
One-Click File Repair: Complex CAD files often have errors (e.g., non-manifold edges) that prevent slicing. The platform automatically detects and repairs these issues, eliminating manual intervention.
Intelligent Support Generation: The system uses self-developed professional intelligent algorithms to automatically generate optimal support structures for the specific geometry of a tire mold pattern, ensuring structural integrity during the build without compromising surface quality.
Optimal Part Orientation: For specialized machines like the UnionTech RA600, the platform automatically orients the tire mold pattern to minimize printing time and maximize dimensional accuracy, adhering to the tight tolerances required (pattern groove deviation controlled within ± 0.05 mm).
Digital Process Parameter Matching
Every material and every part geometry requires a specific set of laser power, scan speed, and exposure settings. The cloud platform uses its vast data library to intelligently match the print job to the best parameters.
Intelligent Parameter Setting: Instead of an engineer spending hours manually tweaking print settings, the platform utilizes stored process packages tailored for tire mold resins, ensuring the high fidelity and surface quality necessary for tire vulcanization. This is the heart of the “one-click” functionality.
Remote Transmission: Once processed in the 3D printing cloud platform, the file is transmitted directly to the printer (e.g., the RA600), bypassing local file transfers and reducing the risk of version errors—a critical step in any industrial 3D printer manufacturer’s solution.
Real-Time Monitoring and Unmanned Production
The platform’s connectivity elevates the role of the printer from a standalone machine to a managed asset in a digital factory.
Remote Monitoring and Control: Engineers can monitor the status of multiple UnionTech printers remotely via the 3D printing cloud platform. Real-time video feeds, sensor data, and job progress allow for complete oversight without needing to be physically present at the machine.
Defect Monitoring: Advanced features, such as those found in UnionTech’s integrated software, can employ machine vision and deep learning algorithms to detect and calculate graphical defects on each layer as it prints. This intelligent monitoring triggers timely responses (alarms, pauses), effectively preventing printing losses and promoting true unmanned, 24/7 production for 3D printing for tire mould.
Data Integration and Management: The platform provides analytics on equipment utilization, material consumption, and job success rates. This data enables enterprise resource planning (ERP) integration and helps management optimize production schedules and capacity planning.
The Result for the Automotive Industry
The integration of the dedicated RA600 industrial printer and the Unionfab ONE 3D printing cloud platform provides tire manufacturers with an end-to-end digital solution. This is a crucial step in the evolution of 3D printing in automotive industry from a prototyping tool to a core component of manufacturing.
The benefits for 3D printing for tire mould production are profound:
Reduced Production Cycle: Eliminates weeks of manual tooling and minimizes pre-processing time, drastically accelerating the iteration cycle for new tire designs.
Consistent Quality: Intelligent parameter control ensures repeatable, high-precision prints across all machines and batches, regardless of the operator.
Expanded Design Space: Designers are freed to create complex sipes and grooves that were previously impossible to machine, leading to superior, performance-driven tire patterns.
Conclusion
The question of how a 3D printing cloud platform enables one-click intelligent printing for tire molds is answered through automation, integration, and data. By centralizing the complex preprocessing, intelligently matching parameters, and providing real-time remote oversight, platforms like Unionfab ONE unlock the full potential of industrial machines.
For any leading industrial 3D printer manufacturer like UnionTech, the hardware is only half the solution. The cloud platform is the digital brain that simplifies complexity, drives efficiency, and makes high-precision, customized 3D printing for tire mould a scalable reality, ensuring the automotive sector can innovate at the speed of light.
