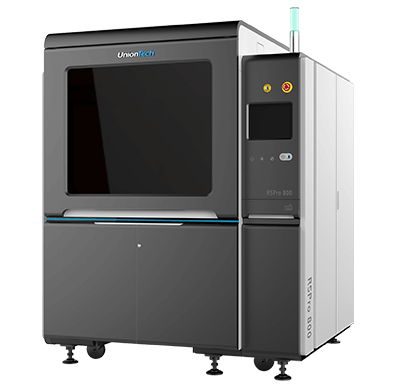

RSPro800 Industrial SLA 3D Printer

RSPro800 is an industrial-grade larger format SLA 3D printer, compatible with a variety of 3D printing materials for large-batch printing. High efficiency, high precision, high stability. Using variable spot and split design to provide a one-stop solution for large-format integral printing, small-format for large-batch printing.

RSPro800 Technical Data

Build Volume (XYZ)800 × 800 × 550 mm (31.5 × 31.5 × 21.7 in)

Dimension<100 mm: ±0.1 mm

Dimension ≥100 mm: ±0.1% x Dimension

Layer Thickness0.07-0.25 mm

355 nm, solid-state frequency tripled

Nd: YVO₄

Beam FocusDynamic & Variable
Beam Size0.12-0.2 mm
MaterialCompatible with commercial available resins for 355 nm stereolithography
Scanning Speed6-10 m/s
Controlling SoftwareUnionTech™ RSCON
Data Preparation SoftwarePolydevs
Operation SystemWindows 10
Input Data File FormatSTL
Network Type and Protocol

WiFi, Ethernet


Electrical Requirements200-240 VAC, 50/60 Hz, Single phase
Rated Power3.0 kVA
Systems ControlClosed-loop
Temperature Range72–79 °F (22–26 °C)
Maximum Change Rate1 °C/hour
Relative Humidity< 40%
Machine Size (W x D x H)1550 × 1600 × 2115 mm
Machine Weight1440 kg
Initial Resin Weight560 kg
Resin VatManually Replacing
Processing and FinishingPost-Curing Unit (optional)
Warranty12 Months Service and Support, under UnionTech Purchase Terms and Conditions
Regulatory ConformityCE
