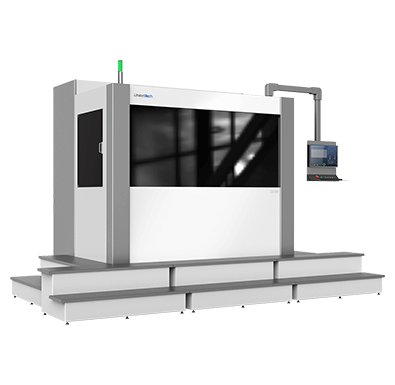

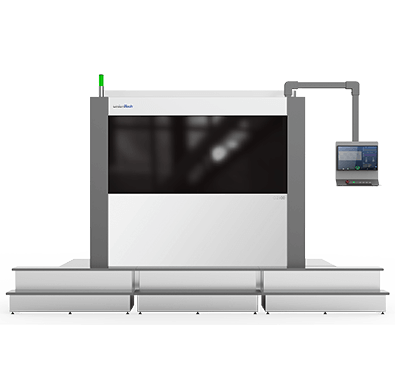

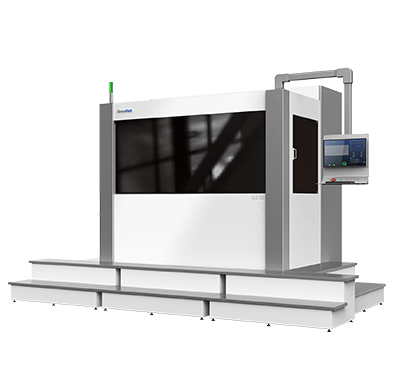

RSPro2100 Large SLA 3D Printer

RSPro2100 is our largest format SLA 3D printer. There are three laser scanning, this innovative scanning additive manufacturing system is perfectly suited for the industrial production of large, high quality fin- ished parts as well as mass part production.

RSPro2100 Technical Data

Build (XYZ)2100 × 700 × 800 mm (82.7 × 27.6 × 31.5 in)
Accuracy

Dimension <100 mm: ±0.2 mm

Dimension ≥100 mm: ±0.2% x Dimension

Layer Thickness0.1-0.25 mm
Laser

355 nm, solid-state frequency tripled

Nd: YVO₄

Beam Focus

Dynamic & Variable
Beam Size0.1-0.85 mm
Material

Compatible with commercial available resins for 355 nm stereolithography

Scanning Speed8-15 m/s
Controlling SoftwareUnionTech™ RSCON
Data Preparation SoftwarePolydevs
Operation SystemWindows 10
Input File Format.usp
Network Type and Protocol

WiFi, Ethernet

Using MQTT, HTTP, TCP

Electrical Requirements200-240 VAC, 50/60 Hz, Single phase
Rated Power3.0 kVA
Systems ControlClosed-loop
Temperature Range72–79 °F (22–26 °C)
Maximum Change Rate1 °C/hour
Relative Humidity< 40%
Machine Size (W x D x H)2630 × 1945 × 2765 mm
Machine Weight2520 kg
Initial Resin Weight2230 kg
Resin VatFixed
Processing and FinishingPost-Curing Unit (optional)
Warranty12 Months Service and Support, under UnionTech Purchase Terms and Conditions
Regulatory ConformityCE / UKCA
