Variable spot technology, high production efficiency

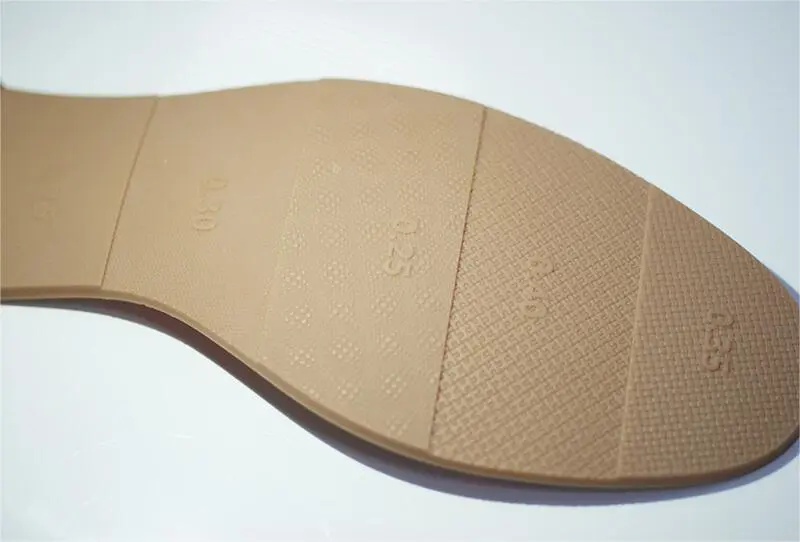

High precision, can restore the sole and side pattern of 0.06mm details
Intelligent control, automatic calibration, automatic rehydration
EPM remote equipment control platform, real-time monitoring, optimized management
CE certification
Recommended Applications:
Mass production of wooden molds
Rapid tooling
Research and development of samples
Try-on of new products
| Build Volume | 450 × 450 × 350 mm 17.7 × 17.7 × 13.8 in |
| Accuracy |
Dimension <100 mm: ±0.1 mm Dimension ≥100 mm: ±0.1% x Dimension |
| Layer Thickness | 0.05-0.25 mm |
| Laser |
355 nm, solid-state frequency tripled Nd: YVO₄ |
|
Beam Focus |
Dynamic & Variable |
| Beam Size | 0.07-0.70 mm |
| Scanning Speed | 8-15 m/s |
| Control Software | UnionTech™ RSCON |
| Operation System | Windows 10 |
| Data Interface | .stl |
| Network |
Ethernet, IEEE802.3, TCP/IP |
| Electrical Requirements | 200-240 VAC, 50/60 Hz, Single Phase |
| Rated Power | 2.6 kVA |
| Systems Control | Closed-loop |
| Temperature Range | 72–79 °F (22–26 °C) |
| Maximum Change Rate | 1 °C/hour |
| Relative Humidity | < 40% |
| Resin Vat | Replaceable / Fixed |
| Machine Dimensions |
1245 × 1105 × 1960 mm 49.02 x 43.50 x 77.17 in |
| Machine Weight | 810 kg |
Consult with your sales representative for confirmation of current offering.
