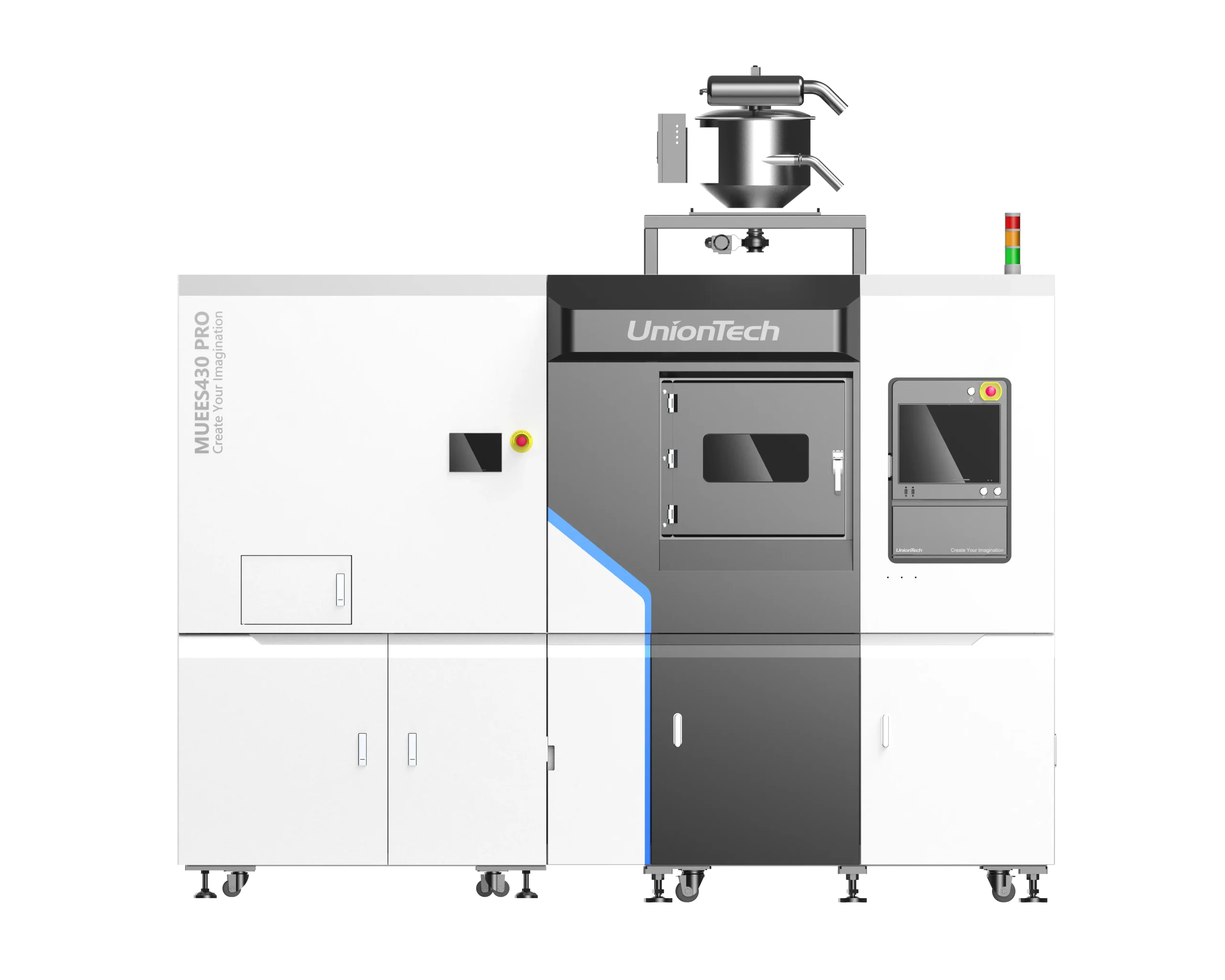

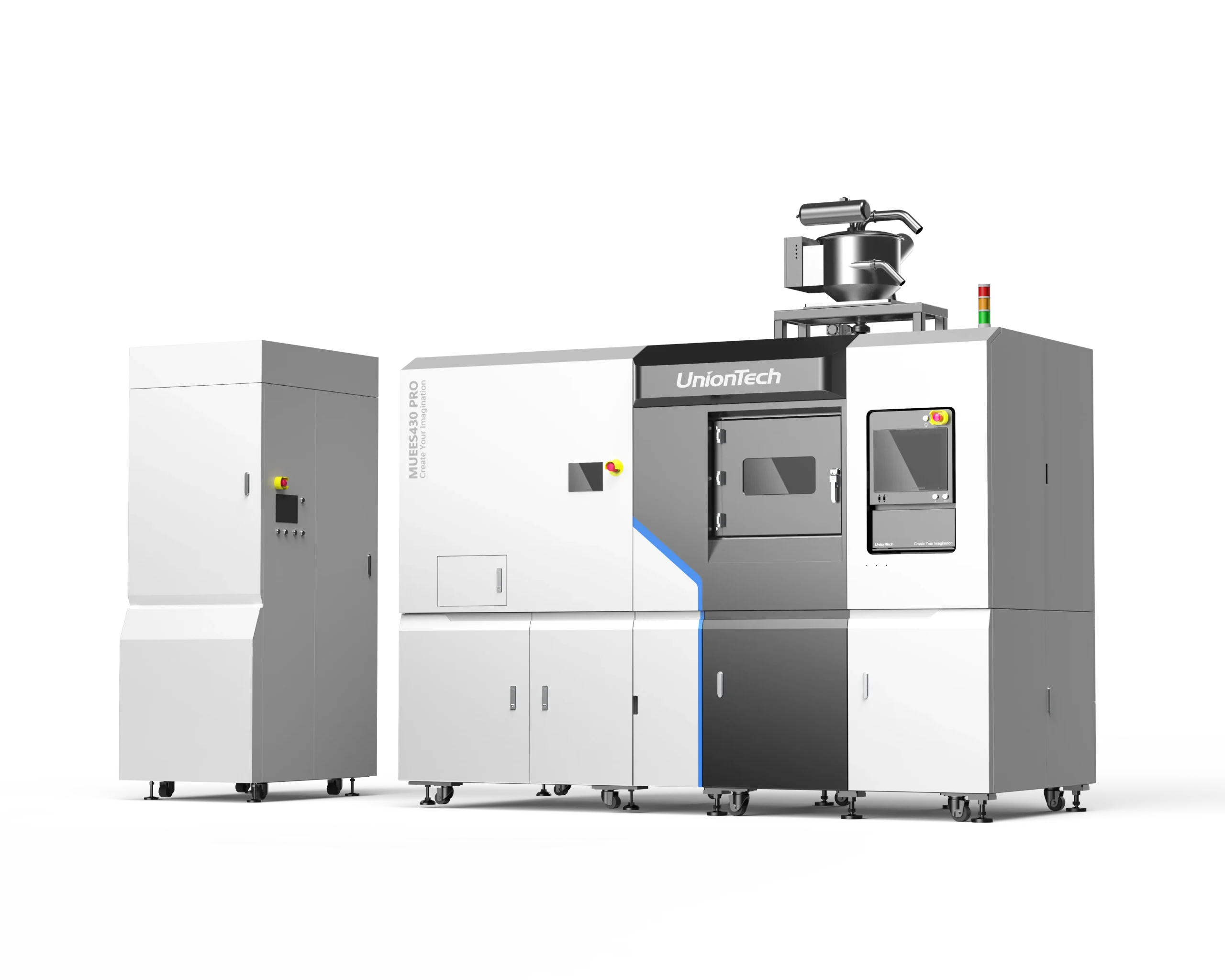

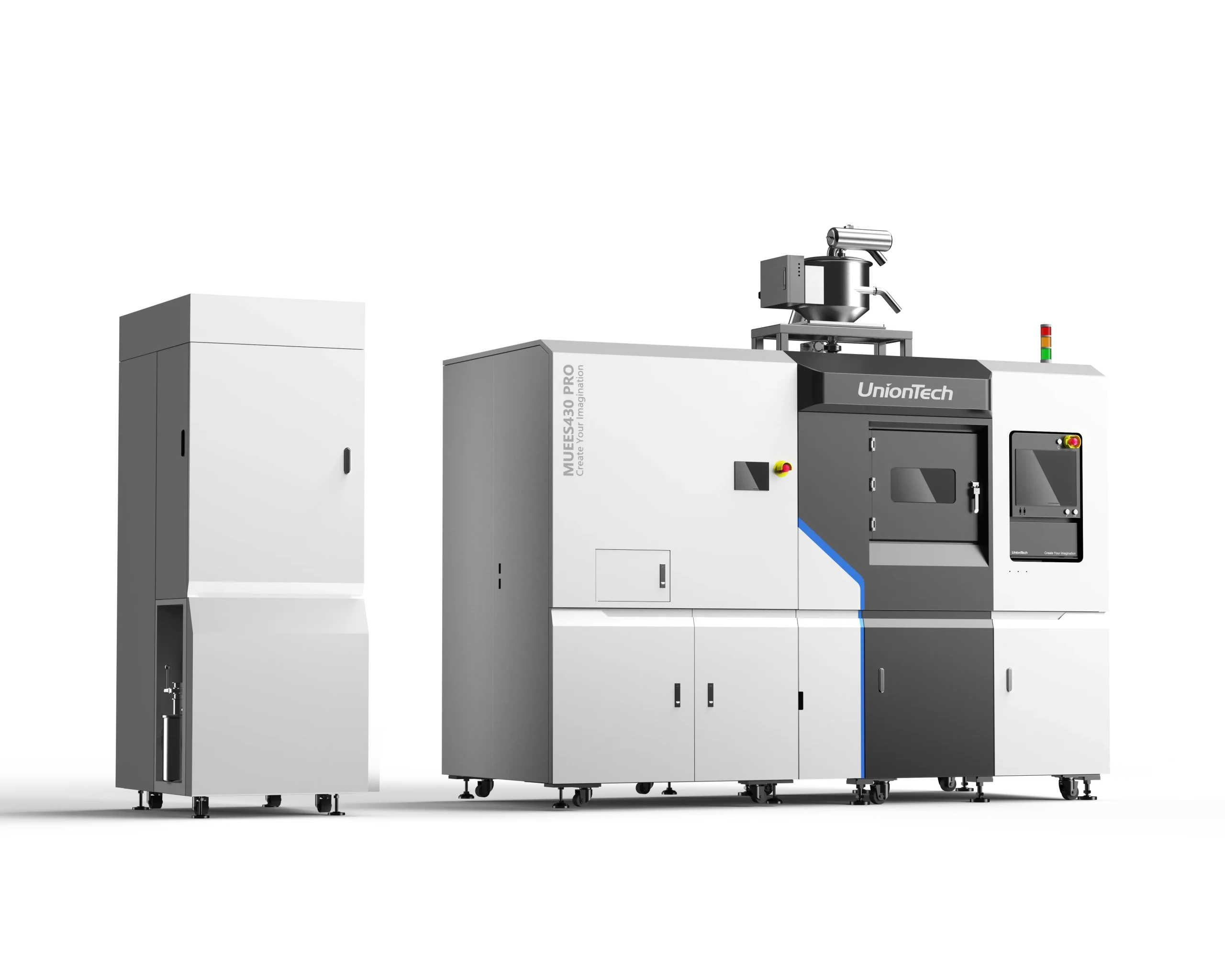

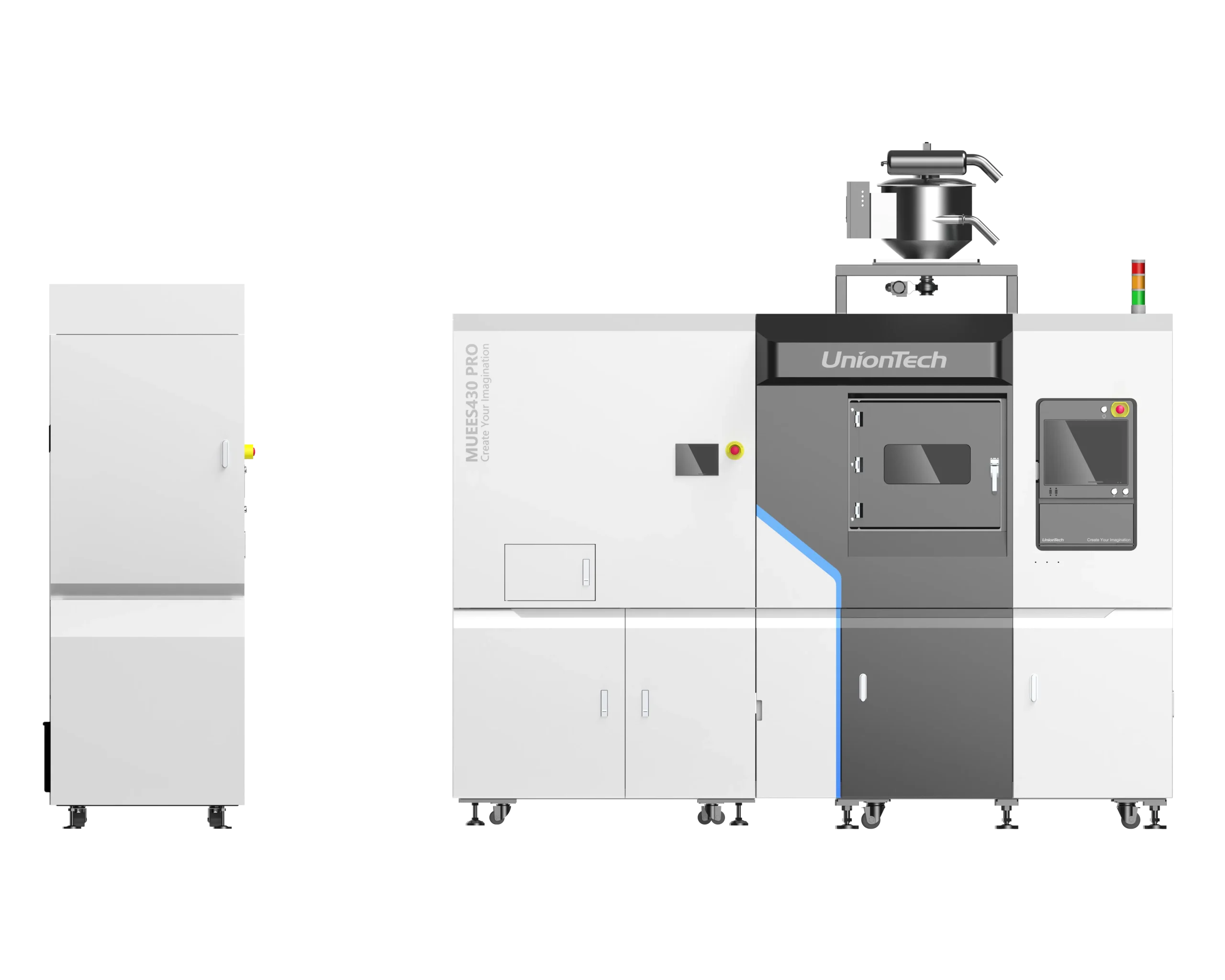

Muees430 Industrial-grade SLM 3D Printer

Safety Gas Circulation

Built-in safety and venting valves ensure safety when printing.

Air Filtration System

Environmentally friendly, avoiding secondary pollution.

Double Sealed Piston

Ensures the sealing of the metal powder storage room.

Software

Self-developed full-process software system.

Muees430 Technical Data


Build Volume

430 × 340 × 400 mm

16.93 × 13.39 × 15.75 in

Build Chamber Size

440 × 350 × 440 mm

17.32 × 13.78 × 17.32 in

Laser TypeYb-fiber Laser, 1 x 500 w / 2 x 500 w
Precision Optics4 F-theta-lenses
Layer Thickness20μm - 100μm
Max. Scanning Speed6 m/s
Inert GasArgon / Nitrogen
Power

380 vAC, 50 Hz

Machine Dimensions

2950 x 1350 x 2200 mm

116.14 x 53.15 x 86.61 in

Machine Weight2200 kg

Consult with your sales representative for confirmation of current offering.
