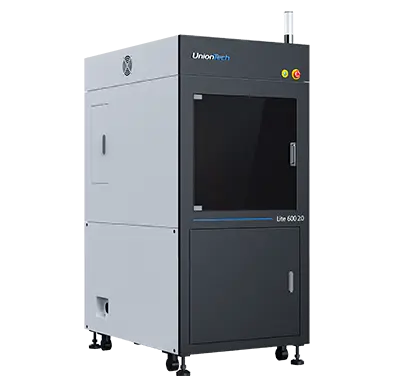

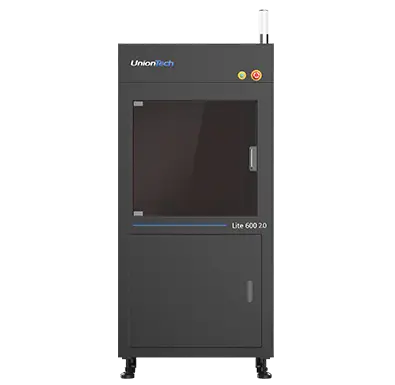

Lite600 2.0 Industrial-grade SLA 3D Printer

Lite600 2.0 is smaller than the previous generation, which can reduce the footprint and transportation costs. It's a large format plastic affordable SLA 3D printer, compatible with a variety of 3D printing materials for small-batch printing. Provide a one-stop solution for small-batch printing with high efficiency, accuracy, and stability.
SMALLER. STRONGER. SMARTER.

SMALLER. STRONGER. SMARTER.

Provide a one-stop solution for small-batch printing with high efficiency, accuracy and stability.

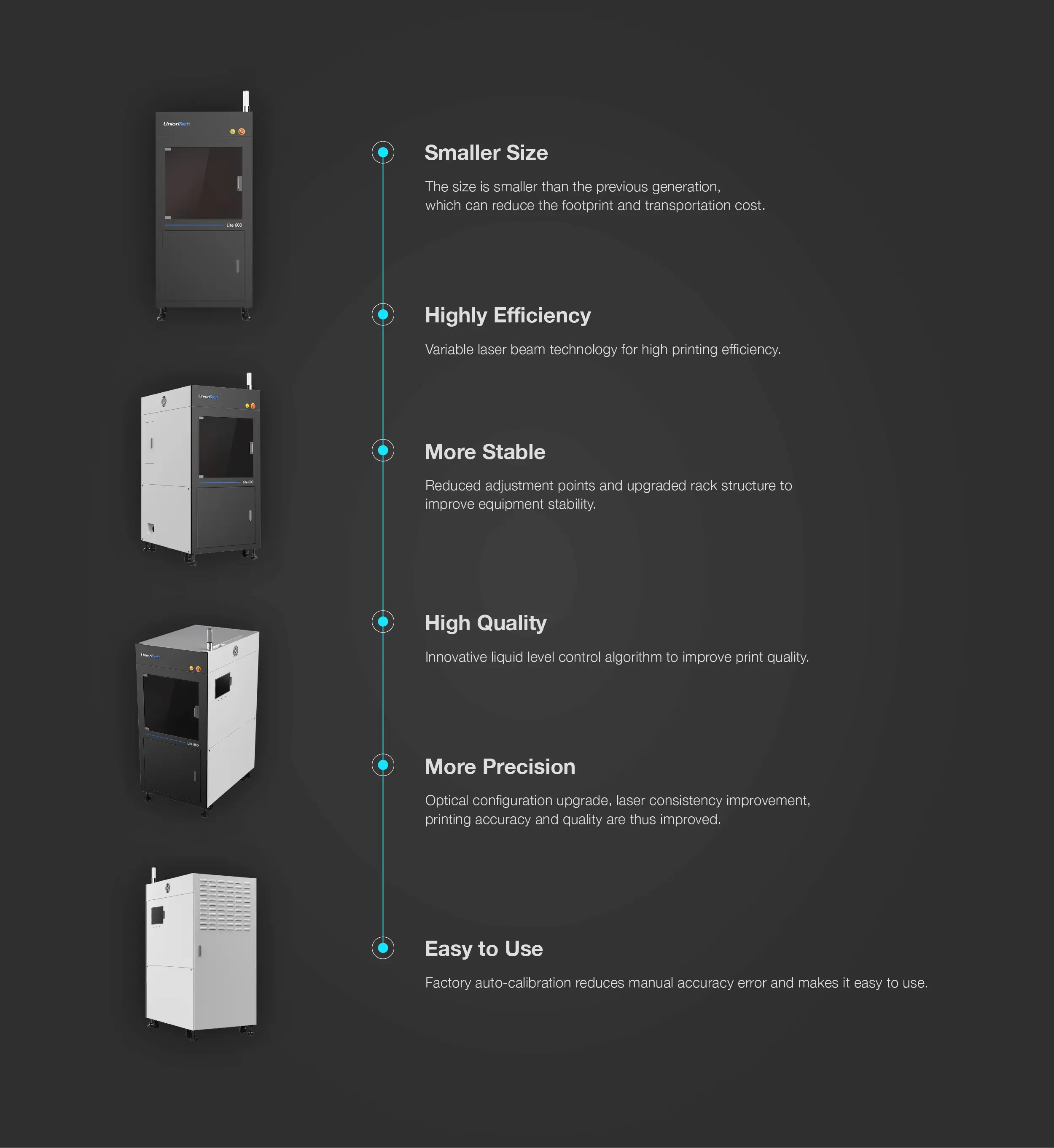

Smaller
Smaller
The size is smaller than the previous generation.
Stronger
Stronger
Reduced adjustment points and upgraded rack structure to improve equipment stability.
Smarter
Smarter
Factory auto-calibration reduces manual accuracy error and makes it easy to use.
Industrial-grade SLA 3D Printer

How To Work

ONE PRINTER, MULTIPLE INDUSTRIES

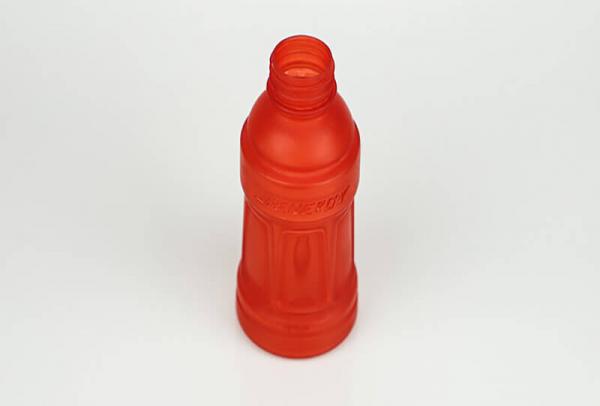

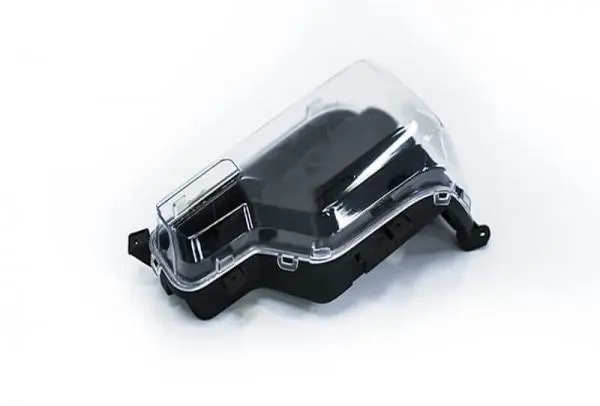

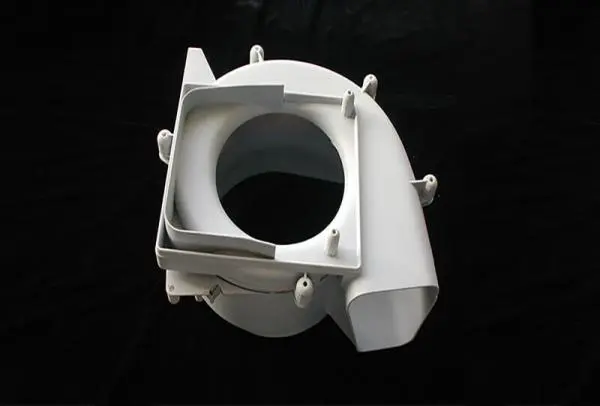

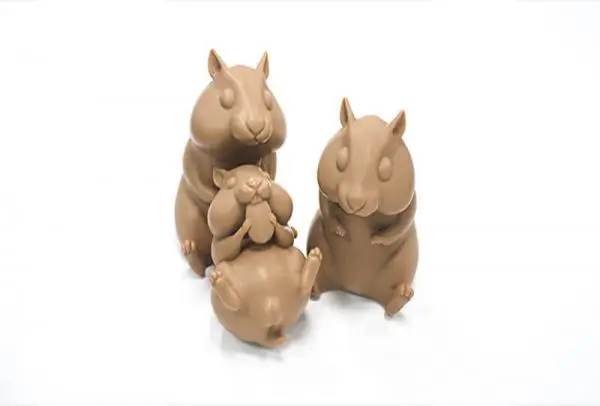

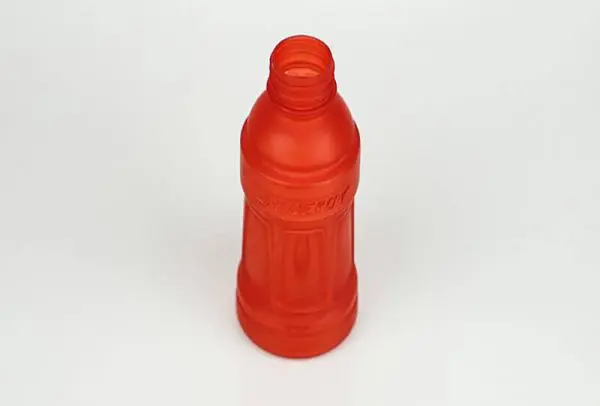

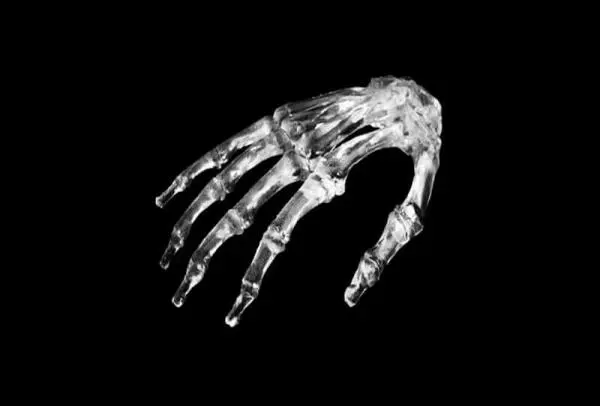

Fabricate beautiful, high-performance models, appliances, and prosthetics on a single printer with a wide range of rigorously tested 3D printing materials.

Lite600 2.0 Technical Data


Build Volume

600 × 600 × 400 mm

23.62 × 23.62 × 15.75 in

Accuracy

Dimension <100 mm: ±0.1 mm

Dimension ≥100 mm: ±0.1% x Dimension

Layer Thickness0.05-0.25 mm
Laser

355 nm, solid-state frequency tripled

Nd: YVO₄

Beam Focus

Dynamic & Variable
Beam Size0.12-0.8 mm
Scanning Speed8-15 m/s
Control SoftwareUnionTech™ RSCON
Operation SystemWindows 10
Date Interface.stl
Network

Ethernet, IEEE802.3, TCP/IP

Electrical Requirements200-240 VAC, 50/60 Hz, Single Phase
Rated Power2.6 kVA
Systems ControlClosed-loop
Temperature Range72–79 °F (22–26 °C)
Maximum Change Rate1 °C/hour
Relative Humidity< 40%
Resin VatFixed
Machine Dimensions

880 × 1280 × 1895 mm

34.65 x 50.39 x 74.61 in

Machine Weight760 kg

Consult with your sales representative for confirmation of current offering.
