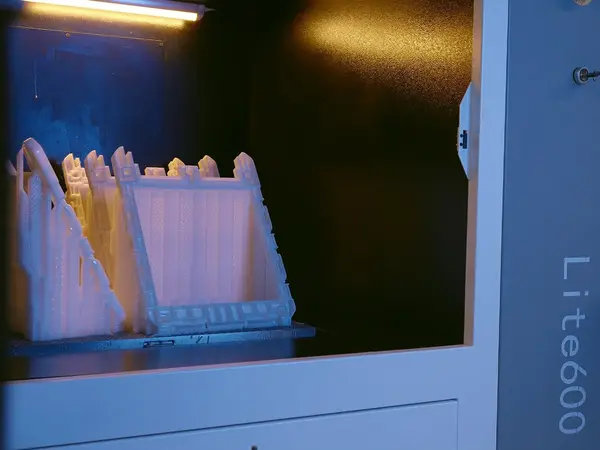

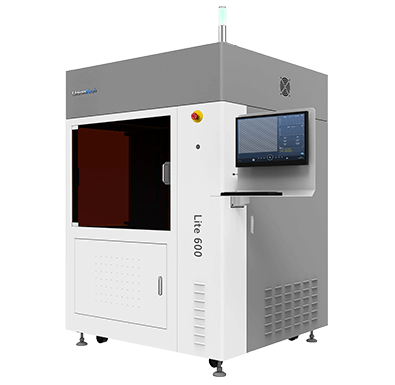

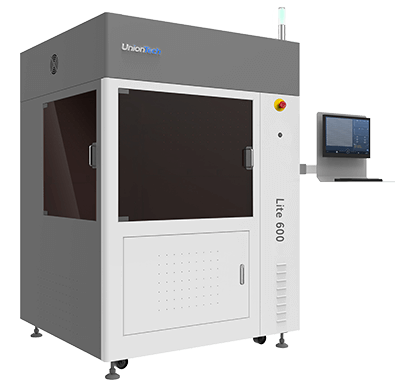

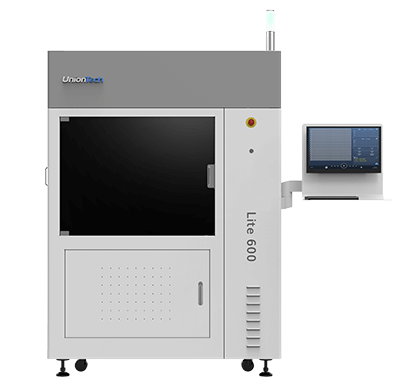

Lite600 Industrial SLA 3D Printer

Lite600 is an affordable mid-format plastic 3D printer, compatible with a variety of 3D printing materials for small-batch printing. Provide a one-stop solution for small-batch printing with high efficiency, accuracy and stability.

Lite600 Technical Data

Build (XYZ)600 × 600 × 400 mm (23.6 × 23.6 × 15.7 in)
Accuracy

Dimension <100 mm: ±0.1 mm

Dimension ≥100 mm: ±0.1% x Dimension

Layer Thickness0.05-0.25 mm
Laser

355 nm, solid-state frequency tripled

Nd: YVO₄

Beam Focus

Dynamic & Variable
Beam Size0.12-0.8 mm
Material

Compatible with commercial available resins for 355 nm stereolithography

Scanning Speed8-15 m/s
Controlling SoftwareUnionTech™ RSCON
Data Preparation SoftwarePolydevs
Operation SystemWindows 10
Input File Format.usp
Network Type and Protocol

WiFi, Ethernet

Using MQTT, HTTP, TCP

Electrical Requirements200-240 VAC, 50/60 Hz, Single phase
Rated Power2.6 kVA
Systems ControlClosed-loop
Temperature Range72–79 °F (22–26 °C)
Maximum Change Rate1 °C/hour
Relative Humidity< 40%
Machine Size (W x D x H)1375 × 1295 × 1930 mm
Machine Weight850 kg
Initial Resin Weight250 kg
Resin VatManually / Fixed
Processing and FinishingPost-Curing Unit (optional)
Warranty12 Months Service and Support, under UnionTech Purchase Terms and Conditions
Regulatory ConformityCE / UKCA
