lite600v2 best 3d sla printer
lite600v2 china sla 3d printer

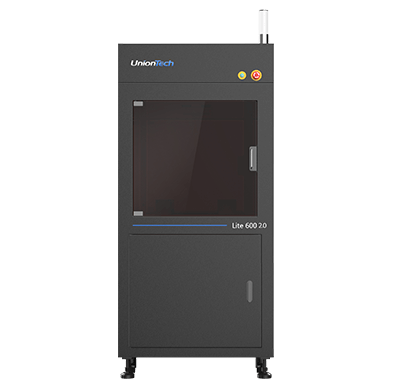

Lite600 2.0 Industrial-grade SLA 3D Printer

Lite600 2.0 is smaller than the previous generation, which can reduce the footprint and transportation costs. It's a large format plastic affordable SLA 3D printer, compatible with a variety of 3D printing materials for small-batch printing. Provide a one-stop solution for small-batch printing with high efficiency, accuracy, and stability.

SMALLER. STRONGER. SMARTER.

SMALLER. STRONGER. SMARTER.

Provide a one-stop solution for small-batch printing with high efficiency, accuracy and stability.

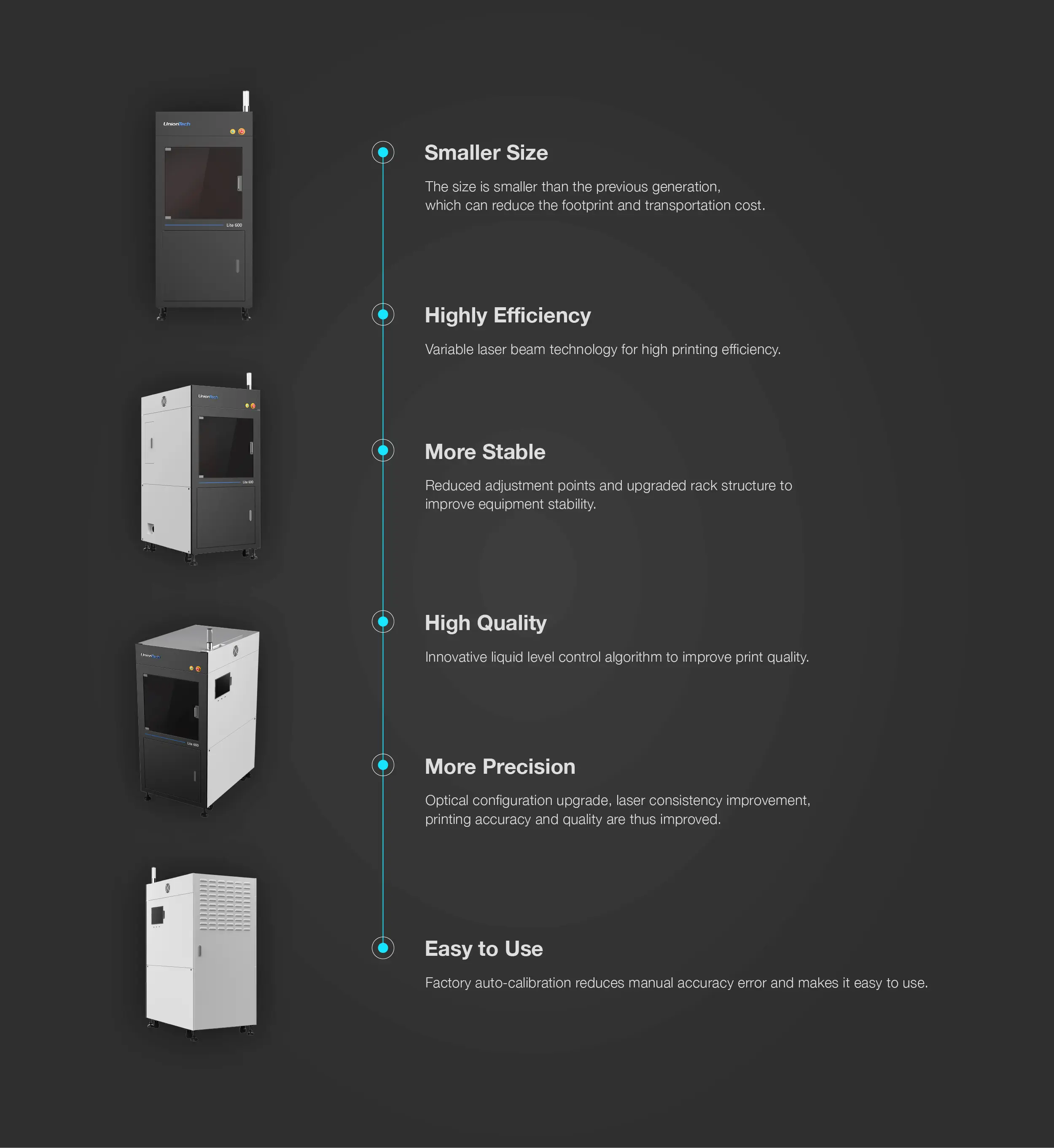

Smaller
Smaller

The size is smaller than the previous generation.

Stronger
Stronger

Reduced adjustment points and upgraded rack structure to improve equipment stability.

Smarter
Smarter

Factory auto-calibration reduces manual accuracy error and makes it easy to use.

Industrial-grade SLA 3D Printer

How To Work

ONE PRINTER, MULTIPLE INDUSTRIES

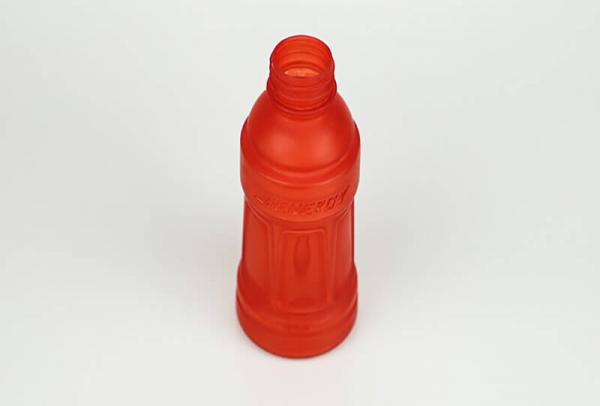

Fabricate beautiful, high-performance models, appliances, and prosthetics on a single printer with a wide range of rigorously tested 3D printing materials.

Lite600 2.0 Technical Data

Build Volume600 × 600 × 400 mm 23.6 × 23.6 × 15.7 in
Accuracy

Dimension <100 mm: ±0.1 mm

Dimension ≥100 mm: ±0.1% x Dimension

Layer Thickness0.05-0.25 mm
Laser

355 nm, solid-state frequency tripled

Nd: YVO₄

Beam Focus

Dynamic & Variable
Beam Size0.12-0.8 mm
Material

Compatible with commercial available resins for 355 nm stereolithography

Scanning Speed8-15 m/s
Controlling SoftwareUnionTech™ RSCON
Data Preparation SoftwarePolydevs
Operation SystemWindows 10
Network Type and Protocol

WiFi, Ethernet

Using MQTT, HTTP, TCP

Electrical Requirements200-240 VAC, 50/60 Hz
Rated Power2.6 kVA
Systems ControlClosed-loop
Temperature Range72–79 °F (22–26 °C)
Maximum Change Rate1 °C/hour
Relative Humidity< 40%
Machine Size (W x D x H)880 × 1280 × 1895 mm
Machine Weight760 kg
Initial Resin Weight257 kg
Resin VatFixed
Processing and FinishingPost-Curing Unit (optional)
Warranty12 Months
Consult with your sales representative for confirmation of current offering.
