fm660
fm660

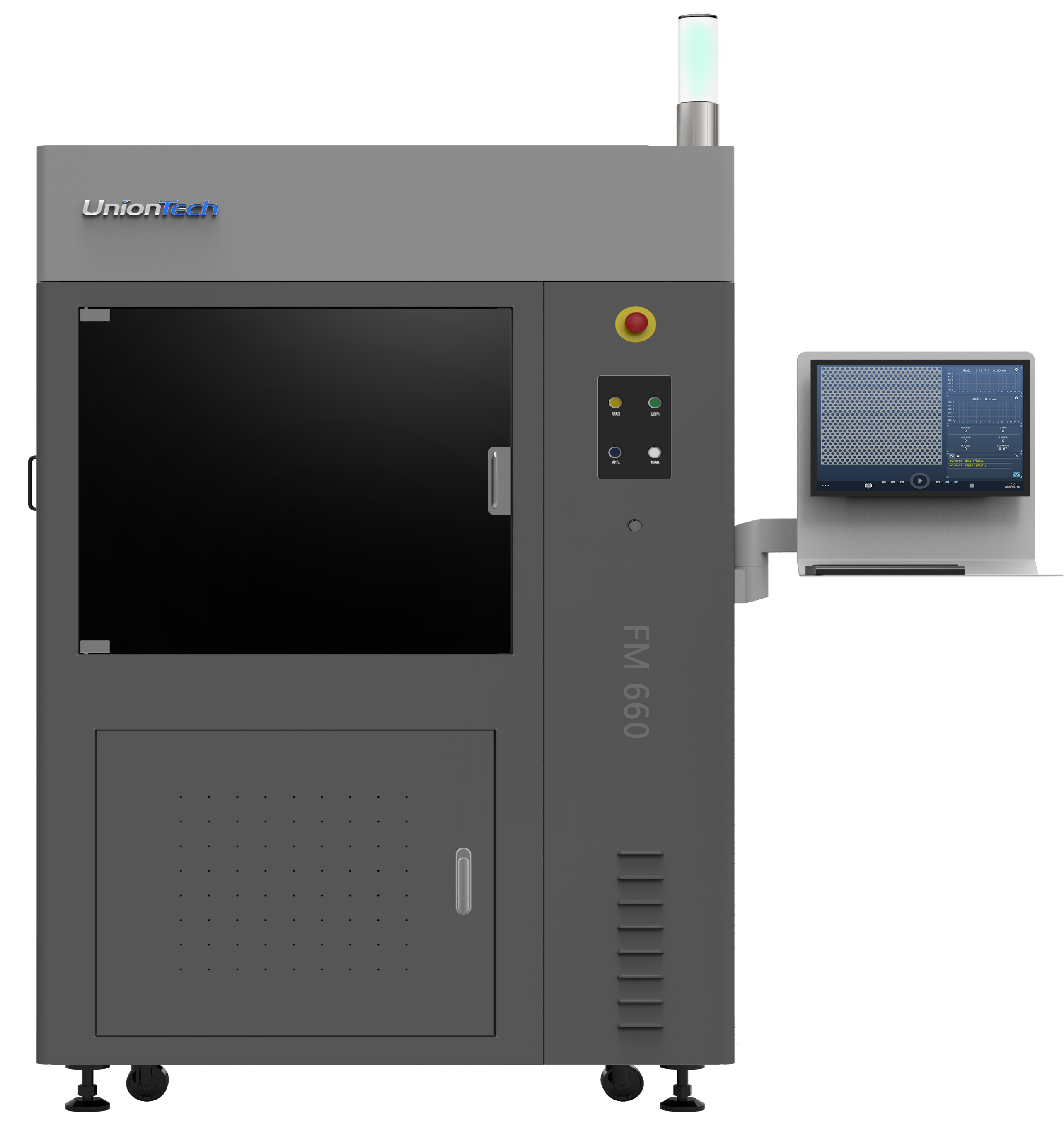

FM660

Variable spot technology, extremely fast and efficient

High precision, can restore the sole and side pattern of 0.06mm details

Customized forming format, faster production scheduling, more advantages

EPM remote equipment control platform, real-time monitoring, optimized management

CE certification


Recommended Applications:

  • Mass production of wooden molds

  • Rapid tooling

  • Research and development of samples

  • Try-on of new products


FM660 Technical Data

Build Volume600 × 600 × 400 mm 23.6 × 23.6 × 15.7 in
Accuracy

Dimension <100 mm: ±0.1 mm

Dimension ≥100 mm: ±0.1% x Dimension

Layer Thickness0.05-0.25 mm
Laser

355 nm, solid-state frequency tripled

Nd: YVO₄

Beam Focus

Dynamic & Variable
Beam Size0.07-0.70 mm
Material

Compatible with commercial available resins for 355 nm stereolithography

Scanning Speed8-15 m/s
Controlling SoftwareUnionTech™ RSCON
Data Preparation SoftwarePolydevs
Operation SystemWindows 10
Network Type and Protocol

WiFi, Ethernet

Using MQTT, HTTP, TCP

Electrical Requirements200-240 VAC, 50/60 Hz, Single phase
Rated Power2.6 kVA
Systems ControlClosed-loop
Temperature Range72–79 °F (22–26 °C)
Maximum Change Rate1 °C/hour
Relative Humidity< 40%
Machine Size (W x D x H)1345 × 1295 × 1930 mm
Machine Weight850 kg
Initial Resin Weight250 kg
Resin VatManually / Fixed
Processing and FinishingPost-Curing Unit (optional)
Warranty12 Months
Consult with your sales representative for confirmation of current offering.
