FM450

Variable spot technology, high production efficiency

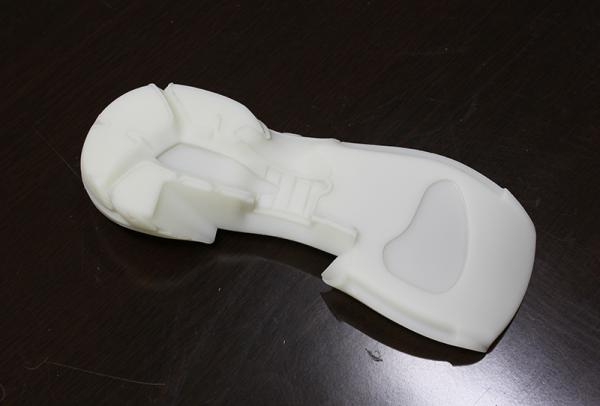

High precision, can restore the sole and side pattern of 0.06mm details

Intelligent control, automatic calibration, automatic rehydration

EPM remote equipment control platform, real-time monitoring, optimized management

CE certification


Recommended Applications:

  • Mass production of wooden molds

  • Rapid tooling

  • Research and development of samples

  • Try-on of new products


FM450 Technical Data

Build Volume450 × 450 × 350 mm 17.7 × 17.7 × 13.8 in
Accuracy

Dimension <100 mm: ±0.1 mm

Dimension ≥100 mm: ±0.1% x Dimension

Layer Thickness0.05-0.25 mm
Laser

355 nm, solid-state frequency tripled

Nd: YVO₄

Beam Focus

Dynamic & Variable
Beam Size0.07-0.70 mm
Material

Compatible with commercial available resins for 355 nm stereolithography

Scanning Speed8-15 m/s
Controlling SoftwareUnionTech™ RSCON
Data Preparation SoftwarePolydevs
Operation SystemWindows 10
Input File Format.usp
Network Type and Protocol

WiFi, Ethernet

Using MQTT, HTTP, TCP

Electrical Requirements200-240 VAC, 50/60 Hz, Single phase
Rated Power2.6 kVA
Systems ControlClosed-loop
Temperature Range72–79 °F (22–26 °C)
Maximum Change Rate1 °C/hour
Relative Humidity< 40%
Machine Size (W x D x H)1245 × 1105 × 1960 mm
Machine Weight810 kg
Initial Resin Weight128 kg
Resin VatManually / Fixed
Processing and FinishingPost-Curing Unit (optional)
Warranty12 Months
Regulatory ConformityCE / UKCA
