Principle of Photosensitive Resin 3D Printer

3D printing technology is revolutionizing manufacturing with its high-tech, high-efficiency, and high-quality characteristics. This innovative digital technology aligns perfectly with new development concepts and has spawned various additive manufacturing processes such as SLA, DLP, LCD, SLS, SLM, and FDM. Among these, the photosensitive resin 3D printer, utilizing the SLA molding process, holds a significant market share and is widely used across various industries.

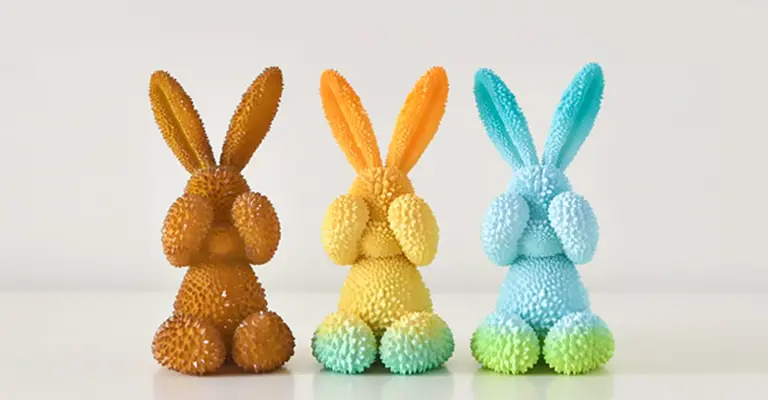

Action Figures Printed by UnionTech AM System

Understanding the Working Principle

To understand the working principle of photosensitive resin 3D printers, we first need to grasp the basics of additive manufacturing. Unlike traditional subtractive or equal material manufacturing, additive manufacturing employs a "differentiation and integration" approach. This technique meticulously reconstructs complex structures with high precision and quality by differentiating the target model into countless slices through pre-processing operations and then printing these slices layer by layer to create a finished model. This "disassembly and assembly" method epitomizes the essence of "differentiation and integration."

The Working Principle of Photosensitive Resin 3D Printers

The operation of photosensitive resin 3D printers follows the general principles of additive manufacturing. Throughout the printing process, these printers use photosensitive resin materials, solidifying each layer through point or surface exposure. By stacking these layers, the printer eventually produces a perfectly formed model. This method has significantly accelerated the transformation and upgrading of the manufacturing industry in terms of speed and precision, fostering the growth of the digital economy with new productivity levels.


Technical Innovations in Photosensitive Resin 3D Printers

Photosensitive resin 3D printers consist of several key components that contribute to their efficiency and precision:

Resin Vat: This is where the photosensitive resin is stored. It is designed to hold the resin in place while the printing process is underway.

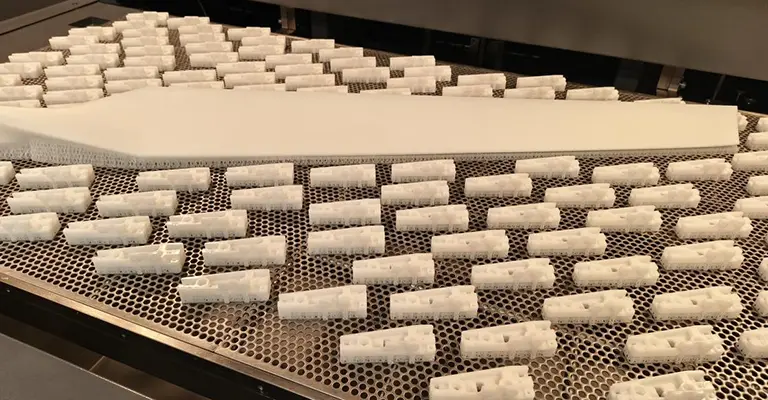

Build Platform: The build platform is where the printed object is formed. It moves up and down to allow the resin to be cured layer by layer.

Laser System: The laser system is crucial for the curing process. It precisely directs the laser to cure specific points or surfaces of the resin, solidifying it layer by layer to create the final object.

Galvanometer: This component controls the direction of the laser. It ensures that the laser beam is accurately directed to the correct points on the resin to form each layer of the object.

Control Software: The control software manages the entire printing process. It translates the digital model into instructions for the printer, guiding the laser system and the build platform to create the object layer by layer.

Coating System: Some photosensitive resin 3D printers include a coating system that ensures even distribution of the resin between layers, improving the quality and consistency of the printed object.

These technical innovations in photosensitive resin 3D printers contribute to their ability to produce high-precision, high-quality parts. The precise control of the laser and the detailed layer-by-layer construction result in models with excellent resolution and surface finish.

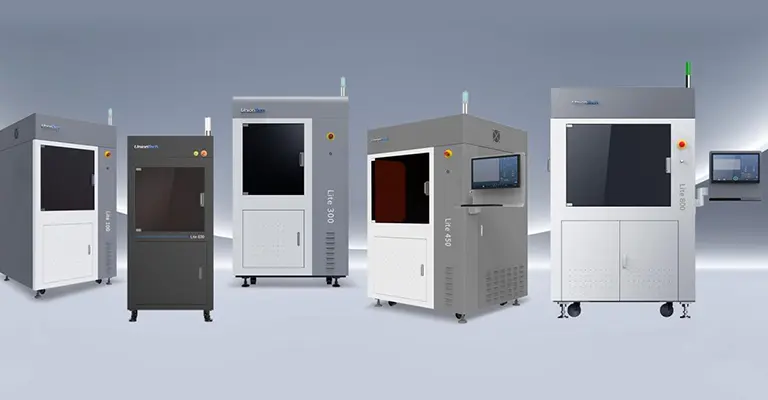

UnionTech Lite Series SLA AM Systems

Future Prospects

While the working principle of photosensitive resin 3D printers might seem straightforward, the core functionality relies on powerful and advanced technologies. As science and technology continue to advance, 3D printing technology is poised to become even more cutting-edge and accessible. This evolution will bring high-tech solutions to a broader audience, driving further innovation and productivity.

Photosensitive resin 3D printers, with their unique additive manufacturing process, are transforming industries by offering high precision and quality in manufacturing. The continuous technological advancements ensure that these printers will play a crucial role in the future of manufacturing, driving progress and efficiency in the digital economy.
