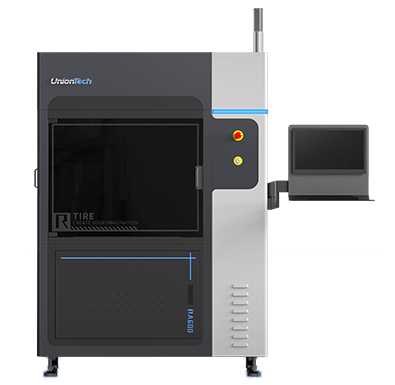

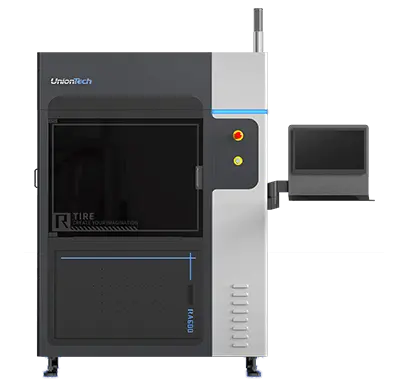

In tire mold production, precision is defined by critical factors such as groove depth, edge sharpness, and circular uniformity. At UnionTech, we have engineered the RA600 tire mold SLA printer specifically to meet these rigorous industrial demands. Achieving consistent results begins with a deep integration between the RA600’s high-precision hardware and the data preparation stage, where model orientation and support strategies set the foundation for dimensional accuracy.
By utilizing the RA600, engineers can control accuracy through sophisticated upstream parameters rather than relying on corrective post-processing. This ensures that fine tread geometries are preserved with zero detail loss, enhancing repeatability across every production cycle.
Groove accuracy in 3D printed tire molds depends on precise resin curing management. The RA600 utilizes advanced scanning algorithms and optimized light distribution to prevent the uneven edges or channel deformations common in lesser systems.
Feature-Specific Scanning: For intricate tread patterns, the RA600 adjusts scanning speeds and path planning to preserve razor-sharp edge definition.
Thermal and Liquid Stability: A key differentiator of the RA600 is its patented vacuum-adsorbed coating system and high-precision liquid level control. By maintaining a stable resin surface and consistent temperature, the RA600 reduces inter-layer variation, ensuring that even the narrowest grooves are reproduced with high fidelity.
Roundness is a non-negotiable requirement for tire molds, as it directly impacts final product balance. The RA600 is built with an industrial-grade, reinforced mechanical structure to ensure absolute motion control across its 600 x 600 x 400 mm build volume.
Mechanical Rigidity: The RA600’s heavy-duty frame minimizes vibration and misalignment during long print cycles, preventing cumulative deviations that could compromise the mold’s circularity.
Shrinkage Compensation: To counter natural resin behavior, UnionTech’s software works in tandem with the RA600’s hardware to apply precise scaling adjustments. This synergy ensures that large-diameter tire molds maintain stable roundness and predictable dimensions from the first layer to the last.
Precision in tire mold additive manufacturing is not the result of a single factor, but the harmony of controlled parameters, stable mechanics, and material science. The RA600 SLA printer is the embodiment of this harmony, specifically tailored to the tire industry’s need for speed and accuracy.
At UnionTech, we focus on aligning our technology with real-world production floor requirements. Through the RA600’s structured process control—from its patented coating technology to its specialized algorithms—manufacturers can reliably produce tire molds that meet the highest international standards for design and performance.
