onfocux600 sla 3dprinter
onfocux600 sla rapid prototyping

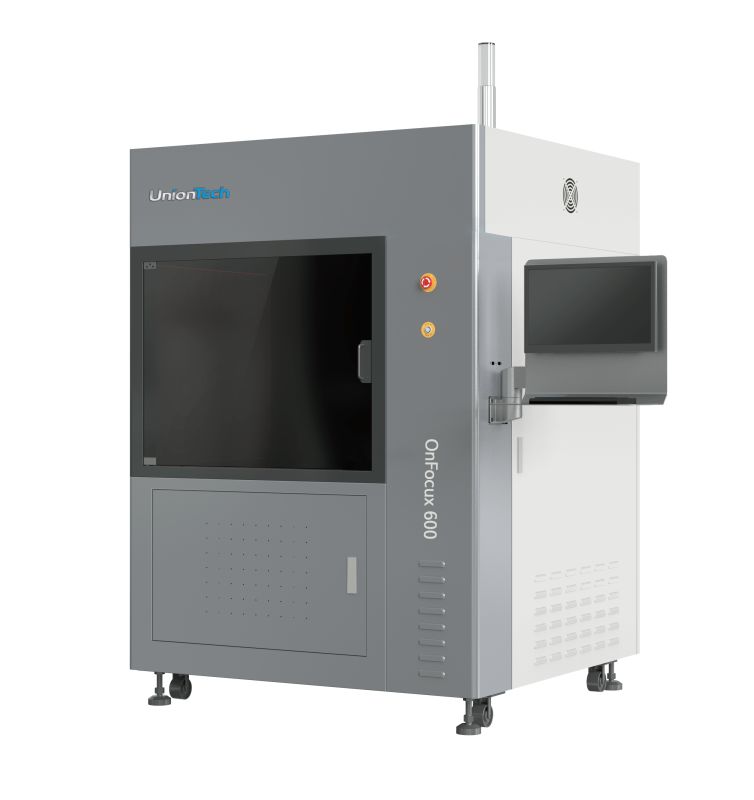

OnFocux600 Prototyping SLA 3D Printer

OnFocux600 is a professional plastic 3D printer for fabrication, faster and affordable for prototyping, supporting small batch production. Compatible with almost all SLA materials, the OnFocux600 supports the printing of thousands of parts each and every day, making small batch production of 3D printed parts a reality.

OnFocux600 Technical Data

Build (XYZ)600 × 600 × 400 mm (23.6 × 23.6 × 15.7 in)
Accuracy

Dimension <100 mm: ±0.1 mm

Dimension ≥100 mm: ±0.1% x Dimension

Layer Thickness0.05-0.25 mm
Laser

355 nm, solid-state frequency tripled

Nd: YVO₄

Beam Focus

Dynamic & Variable
Beam Size0.12-0.8 mm
Material

Compatible with commercial available resins for 355 nm stereolithography

Scanning Speed8-15 m/s
Controlling SoftwareUnionTech™ RSCON
Data Preparation SoftwarePolydevs
Operation SystemWindows 10
Input File Format.usp
Network Type and Protocol

WiFi, Ethernet

Using MQTT, HTTP, TCP

Electrical Requirements200-240 VAC, 50/60 Hz, Single phase
Rated Power2.6 kVA
Systems ControlClosed-loop
Temperature Range72–79 °F (22–26 °C)
Maximum Change Rate1 °C/hour
Relative Humidity< 40%
Machine Size (W x D x H)1375 × 1295 × 1930 mm
Machine Weight850 kg
Initial Resin Weight250 kg
Resin VatFixed
Processing and FinishingPost-Curing Unit (optional)
Warranty12 Months Service and Support, under UnionTech Purchase Terms and Conditions
Regulatory ConformityCE / UKCA
