UOne

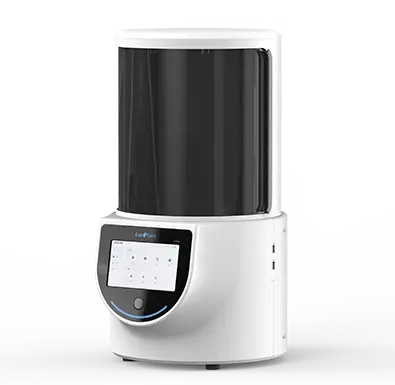

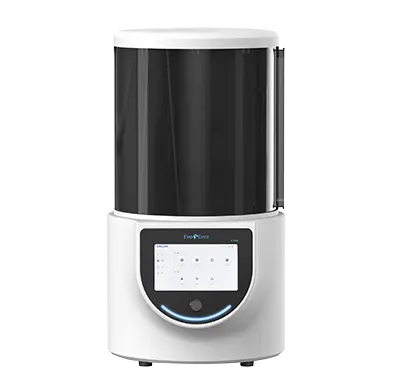

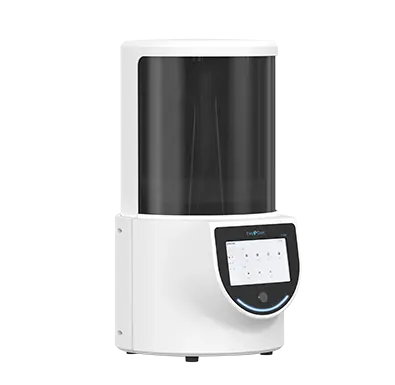

UOne is a desktop DLP 3D printer designed specifically for dental clinics and small laboratories. It has a 2K resolution, ensuring a large-format coupled with high precision, reaching up to 56 microns. UOne is equipped to handle a comprehensive array of dental scenarios and is accompanied by a complete selection of resin materials.

UOne Technical Data


Build Volume

143 x 80 x 80 mm

5.63 × 3.15 × 3. in

Accuracy

±0.028 mm

Pixel Size

56 μm
Resolution2560 × 1440 HD
Wavelength

405 nm

Projection ModeBottom-up Projection
Controlling SoftwareUnionTech™ DSCON
Data Preparation SoftwarePolydevs
Operation SystemWindows 10
Network Type and Protocol

USB, WiFi, Ethernet

Using MQTT, HTTP, TCP, UDP, FTP

Electrical Requirements200-240 VAC, 50/60 Hz
Rated Power800W
Systems ControlClosed-loop
Temperature Range72–79 °F (22–26 °C)
Maximum Change Rate1 °C/hour
Relative Humidity< 40%
Machine Size (W x D x H)425 × 410 × 715 mm
Machine Weight23 kg
Resin VatReplaceable Film
Processing and FinishingPost-Curing Unit (optional)
Warranty12 Months

Consult with your sales representative for confirmation of current offering.
