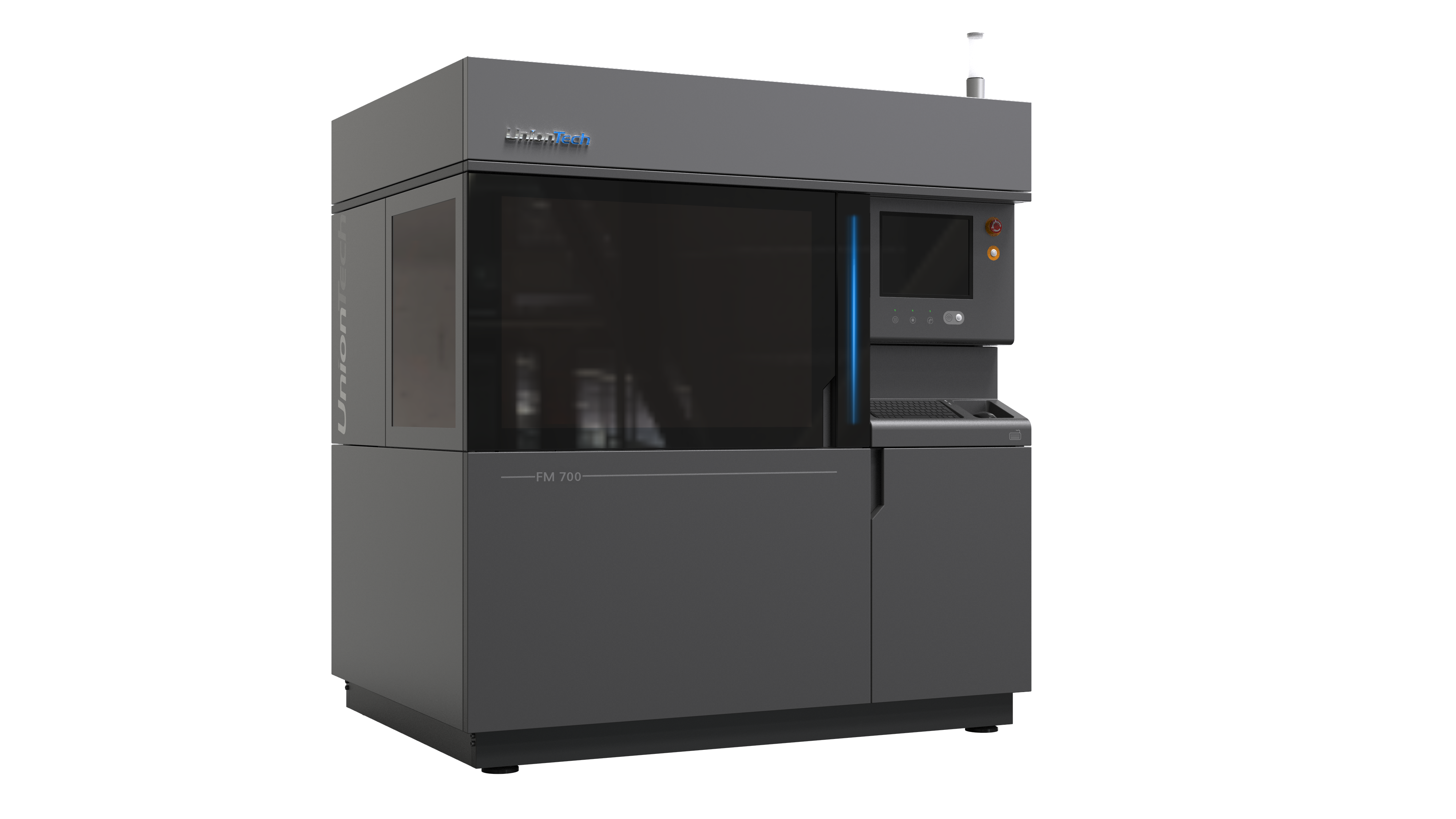

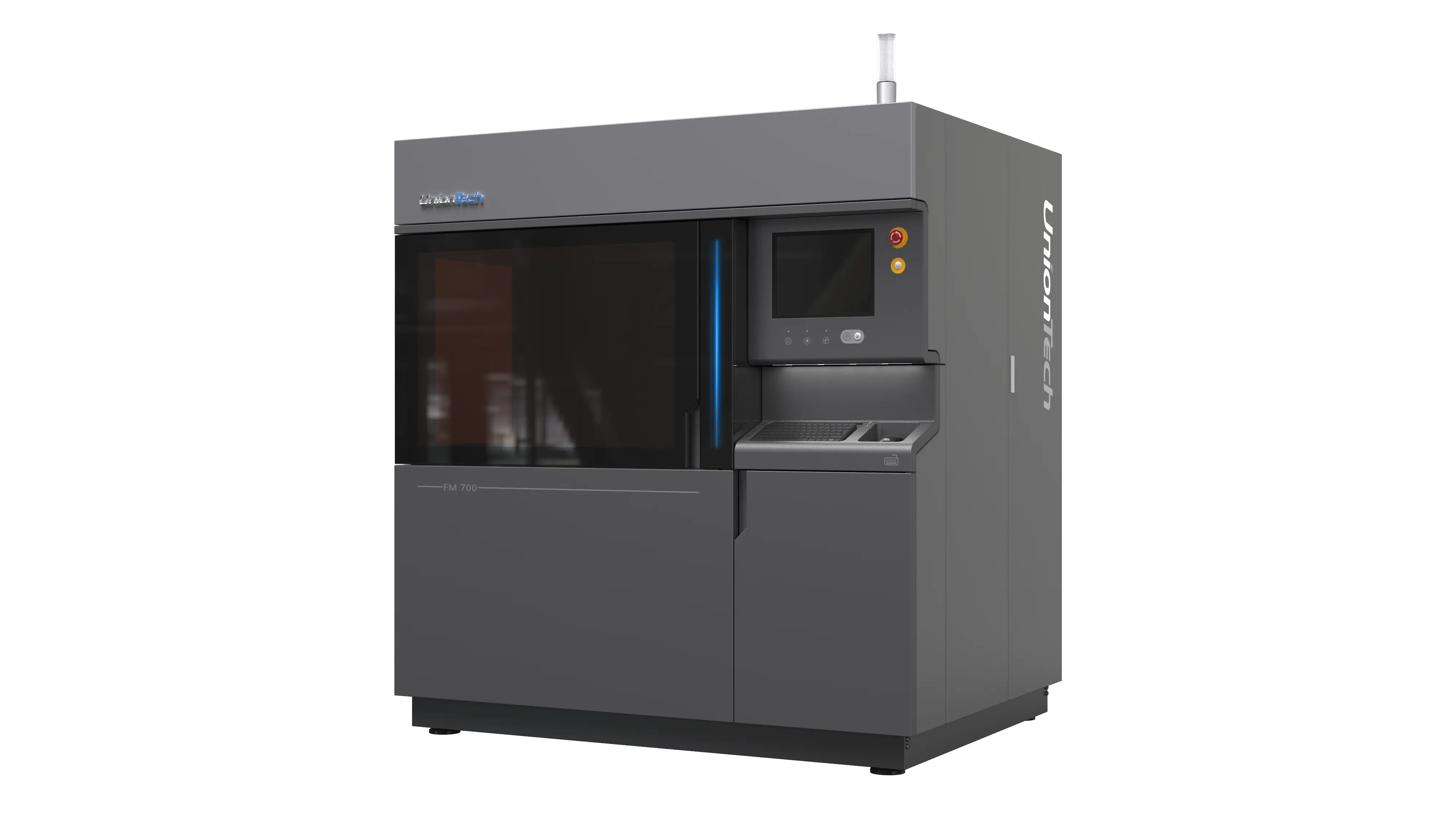

FM700 Footwear SLA 3D Printer

· High-speed dual galvanometer scanning and variable light spot;

· High efficiency, 4 times faster than other SLA equipment in China;

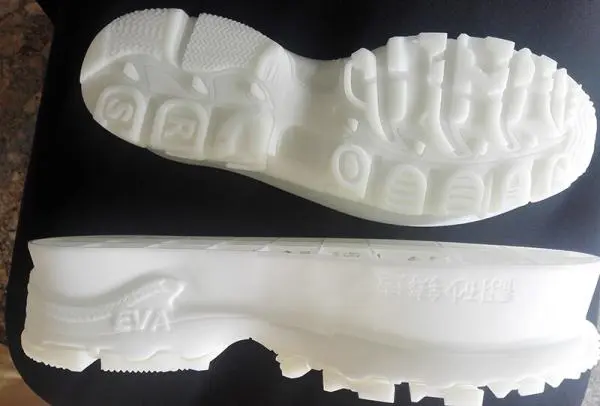

· High precision and able to restore 0.06mm patterns on shoe sole and side;

· Intelligent control, automatic calibration and liquid charging

· EPM remote control platform, real-time monitoring and optimized management;

· CE certified;

· Brand-new appearance design, streamlined and high-tech.


FM700 Technical Data


Build Volume

700 × 350 × 350 mm

27.6 × 13.8 × 13.8 in

Accuracy

Dimension <100 mm: ±0.1 mm

Dimension ≥100 mm: ±0.1% x Dimension

Layer Thickness0.05-0.25 mm
Laser

355 nm, solid-state frequency tripled

Nd: YVO₄

Beam Focus

Dynamic & Variable
Beam Size0.07-0.70 mm
Scanning Speed8-15 m/s
Control SoftwareUnionTech™ RSCON
Operation SystemWindows 10
Data Interface.stl
Network

Ethernet, IEEE802.3, TCP/IP

Electrical Requirements200-240 VAC, 50/60 Hz
Rated Power2.6 kVA
Systems ControlClosed-loop
Temperature Range72–79 °F (22–26 °C)
Maximum Change Rate1 °C/hour
Relative Humidity< 40%
Resin VatReplaceable / Fixed
Machine Dimensions

1790 × 1330 × 1915 mm

70.47 x 52.36 x 75.39 in

Machine Weight1265 kg

Consult with your sales representative for confirmation of current offering.
