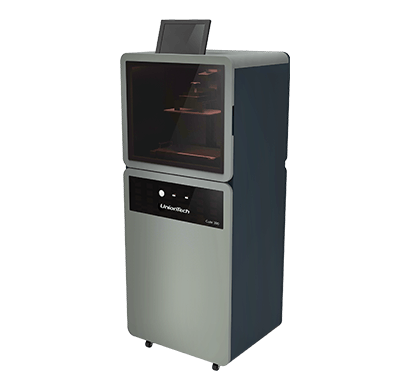

DLP 3D Printer
Industrial DLP 3D printing technology
Practical build envelope capacity of 250 x 140 x 240 mm
Industry-leading print quality, speed and precision
3D print software for file preparation and production
Compatible with a variety of 3D printing materials
Application
Electronics, Education, Investment Casting, Prototype
| Build Volume |
250 x 140 x 240 mm 9.83 × 5.53 × 9.45 in |
| Accuracy |
±0.05 mm |
| Layer Thickness |
0.05 / 0.1 mm |
| Print Speed |
40 mm/h |
|
Pixel Size |
65 μm |
| Resolution | 3840 × 2160 HD |
| Wavelength |
405 nm |
| Projection Mode | Bottom-up Projection |
| Controlling Software | UnionTech™ DSCON |
| Network |
WiFi, Ethernet |
| Electrical Requirements | 200-240 VAC, 50/60 Hz |
| Rated Power | 800W |
| Systems Control | Closed-loop |
| Temperature Range | 22–26 °C (72–79 °F) |
| Maximum Change Rate | 1 °C/hour |
| Relative Humidity | < 40% |
| Resin Vat | Fixed |
| Machine Dimensions | 600 × 510 × 1450 mm |
| Machine Weight | 122 kg |
Consult with your sales representative for confirmation of current offering.
