EvoDent S200 DLP 3D Printer

The new generation of high quality, high production DLP printers.

  • Ultra-high accuracy with horizontal resolution up to ±30μm.

  • Ultra-stable with over 15 days without any deformation.

  • A full-plate printing in just one hour.

  • 6-12 full arch dental models in one print.

  • Automatic power correction to achieve better finish quality.

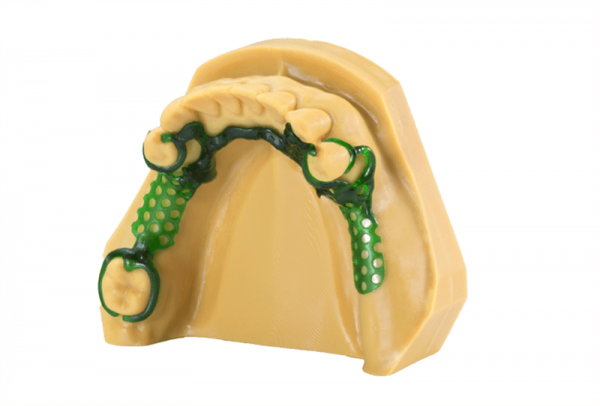

ONE PRINTER, MULTIPLE APPLICATIONS

EvoDent S200 Technical Data


Build Volume192 × 108 × 200 mm 7.56 × 4.25 × 7.87 in
Accuracy

±0.05 mm

Layer Thickness

0.05 mm

Print Speed

40 mm/h

Pixel Size

50 μm
Resolution3840 × 2160 HD
Wavelength

405 nm

Projection ModeBottom-up Projection
Controlling SoftwareUnionTech™ DSCON
Data Preparation SoftwarePolydevs
Operation SystemWindows 10
Network Type and Protocol

WiFi, Ethernet

Using MQTT, HTTP, TCP, UDP, FTP

Electrical Requirements200-240 VAC, 50/60 Hz
Rated Power800W
Systems ControlClosed-loop
Temperature Range72–79 °F (22–26 °C)
Maximum Change Rate1 °C/hour
Relative Humidity< 40%
Machine Size (W x D x H)600 × 510 × 1450 mm
Machine Weight120 kg
Resin VatReplaceable
Processing and FinishingPost-Curing Unit (optional)
Warranty12 Months

Consult with your sales representative for confirmation of current offering.
